Product Description
Specification:
Fluoroscopic Capacity
Max rated capacity : Tube Current 4mA, Tube Voltage 120kV
Automatic Fluoroscopy : Tube Voltage:40kV~120kV Adjust Automatically
Tube Current : 0.3mA~4mA Manually Settings
Manual Fluoroscopy : Continuous Tube Voltage:40kV~120kV
Continuous Tube Current : 0.3mA~4mA
Pulse Fluoroscopy : Continuous Tube Voltage 40kV~120kV
Continuous Tube Current: 4.1mA~8mA
Features:
1. New integrated design, compact appearance, convenient operation.;
2. Unique hand-held remote controller, more convenient operation
3. Graphical colorfully LCD touch screen console interface, convenient operation, fashionable design
4. High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation.
5. Toshiba image intensifier is employed, stable and reliable in quality , high definition image and display system
6. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function.
7. Medical high-resolution progressive output TV system, eight image storage, clearer image and convenient operation.
System Performance and Parameter
Photography Capacity:3.5KW
Fluoroscopy Capacity Tube current:8mA Tube Voltage:110KV
Automatic Fluoroscopy Tube Voltage:40kV~110kV automatical adjustment
Tube Current:0.3mA~4mA automatical adjustment
Manual Fluoroscopy Tube Voltage:40kV~110kV Continuous
Tube Current:0.3mA~4mA Continuous
Pulse Fluoroscopy Tube Voltage:40kV~110kV Continuous
Tube Current:4.1mA~8mA Continuous
film holder Size 200mm×250mm(8″×10″)or 250mm×300mm(10″×12″)
Packing & Delivery
|
|

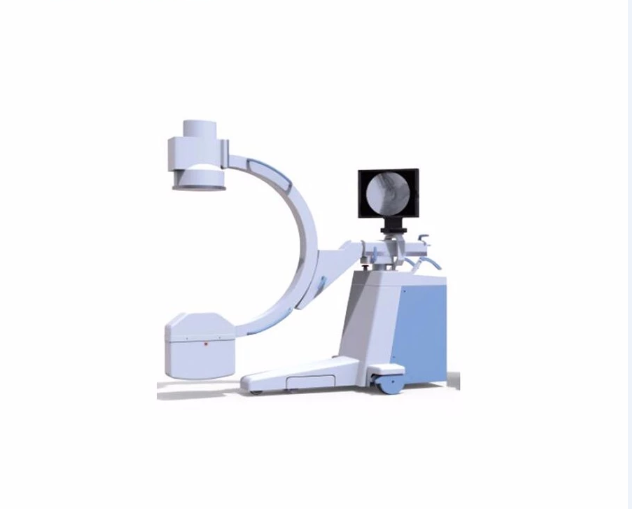

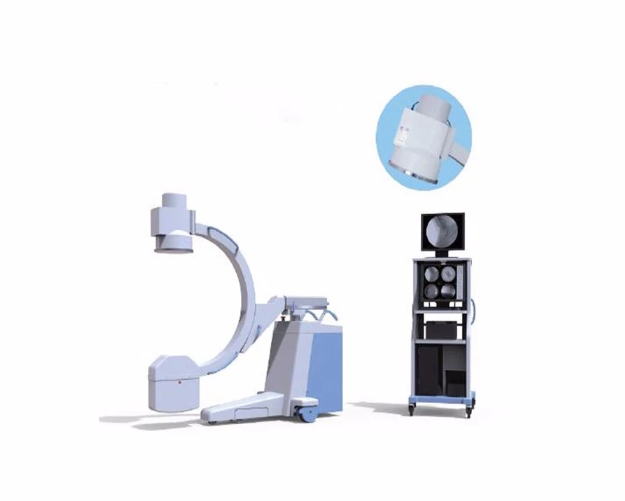

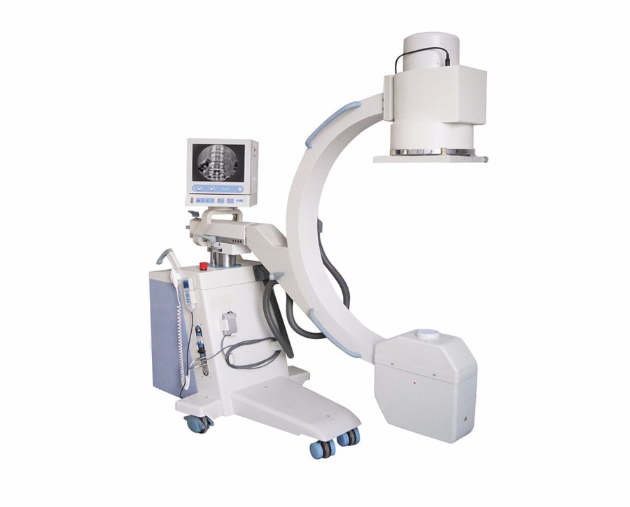

Hospital Mobile Digital C-arm Equipment Images
|
